Moviebox-API

MovieBox API Pro

A pure REST API wrapper around moviebox.ph with an indexed catalog, provider failover, FTS5 search, and a self-hosted frontend.

No scraping. No HTML parsing. No headless browser. It talks the exact same private JSON API the moviebox web player talks — h5-api.aoneroom.com/wefeed-h5api-bff — and re-exposes it as a clean, self-hosted REST surface plus a browser UI.

Built for people who want to wire moviebox into their own apps, scripts, bots, dashboards, or media servers without reverse-engineering the network tab every time the site ships an update.

Version 2.7.0 — module split, provider failover, FTS5 search, trailer playback, continue-watching row.

What it does

Discovery — banners, featured blocks, and every category row from the moviebox home feed
Indexed catalog — SQLite-backed, 1700+ subjects across movies / TV / anime, self-refreshing on a 6h schedule
Full-text search — FTS5-powered title search with prefix matching and rank ordering
Search — full-text search + typeahead suggestions against upstream
Metadata — full detail tree for any subject (episodes, seasons, languages, cast, trailer, artwork)
Streams — direct MP4 sources per resolution, plus HLS and DASH manifests
Stream proxy — Range-aware MP4 passthrough for media servers
Subtitles — full caption list per episode, SRT→VTT conversion inline
Provider failover — 7 known mirrors, circuit breaker per host, automatic fallover
Web frontend — hero carousel, catalog browser, player with resume / quality / subtitle pickers, trailer playback, continue-watching, bookmarks, watch history
Diagnostics — tab-ID probing, payload variant testing, raw upstream passthrough, health, SQLite integrity check on boot

What it isn’t

Not a proxy for HLS/DASH manifests (MP4 only)
Not a downloader (it hands you URLs, you decide what to do with them)
Not affiliated with moviebox.ph
Not a scraping tool — it depends on the upstream API staying reachable

Quickstart

git clone https://github.com/faisaljs/Moviebox-API
cd Moviebox-API
pip install -r requirements.txt
python main.py

Server boots on http://localhost:8000. Two entry points:

http://localhost:8000/ — HTML API dashboard, one-click tests for every endpoint
http://localhost:8000/app — the actual frontend (hero carousel, catalog, player, bookmarks, history)

Dev with autoreload:

RELOAD=1 python main.py

Custom port:

PORT=9000 python main.py

Docker:

docker compose up -d

The first boot kicks off the catalog walk in the background. It takes 2–3 minutes to populate ~1700 rows and enrich the type fields. /catalog/stats shows progress.

Single instance only. SQLite is not multi-writer safe across processes. Two python main.py against one catalog.db corrupts it. If you’re testing, Ctrl+C the running server before starting a new one.

Endpoints

Discovery & home

Method	Path	Purpose
`GET`	`/home`	Featured sections and banners
`GET`	`/home/all`	Flattened deduped feed
`GET`	`/sections`	List every home section
`GET`	`/browse/{section}`	Direct access to any home section

Catalog (indexed)

Method	Path	Purpose
`GET`	`/catalog`	Indexed catalog with sort/filter/search
`GET`	`/catalog/stats`	Counts, walk progress, keyword telemetry
`POST`	`/catalog/refresh`	Re-run the walk (`?mode=enrich` for enrichment only)
`POST`	`/catalog/add`	Manually add a subject by slug

Home-fallback catalogs

Method	Path	Purpose
`GET`	`/movies`	Movies from home sections
`GET`	`/tv-series`	TV series from home sections
`GET`	`/animation`	Animation from home sections

Search & metadata

Method	Path	Purpose
`GET`	`/search`	Full-text search against upstream
`GET`	`/search/suggest`	Typeahead (`?enrich=true` for slugs)
`GET`	`/detail/{slug}`	Full metadata for a subject

Stream & subtitles

Method	Path	Purpose
`GET`	`/api/stream/{subject_id}`	Direct video sources
`GET`	`/api/stream/{subject_id}/proxy`	Range-aware MP4 passthrough
`GET`	`/api/stream/{subject_id}/captions`	Subtitle list
`GET`	`/api/stream/{subject_id}/subtitles/{lang}`	SRT → VTT inline

Providers

Method	Path	Purpose
`GET`	`/providers`	Live provider health with circuit breaker state
`POST`	`/providers/probe`	Force-probe all providers now
`POST`	`/providers/reset`	Clear all circuit breakers
`GET`	`/api/hosts`	Backwards-compat host status

Diagnostics

Method	Path	Purpose
`GET`	`/health`	Liveness, cache state, catalog counts
`GET`	`/api/tabs`	Probe tab IDs (diagnostic)
`GET`	`/api/tabs/variants`	Try every known filter payload shape
`GET`	`/api/debug/upstream`	Raw upstream passthrough

`GET /home`

Returns the operating list from the moviebox home feed, grouped into sections. Banner sections and SUBJECTS_* rows are normalized into the same item shape.

curl http://localhost:8000/home | jq

{
  "status": "success",
  "host": "moviebox.ph",
  "sections": [
    {
      "section": "Banner",
      "count": 11,
      "items": [
        {
          "name": "VisionQuest",
          "poster_url": "https://.../cover.webp",
          "slug": "visionquest-hindi-0qVaGP1YHE4",
          "subject_id": "3908280950886646112",
          "badge": "Hindi"
        }
      ]
    }
  ]
}

`GET /catalog`

The real catalog. Reads from the SQLite index populated by the background walk.

Query parameters

Param	Type	Default	Notes
`type`	string	`all`	`all`, `movie`, `tv`, `anime`
`sort`	string	`recent`	`recent`, `title`, `rating`
`page`	int	`1`	1-indexed
`per_page`	int	`24`	Max 100
`q`	string	—	FTS5 title search (with LIKE fallback)
`host`	string	—	Filter by source host

curl "http://localhost:8000/catalog?type=movie&sort=rating&per_page=5" | jq
curl "http://localhost:8000/catalog?q=dragon" | jq
curl "http://localhost:8000/catalog?q=love%20you" | jq   # multi-word AND

Response includes total, total_pages, and items[] with name, poster_url, slug, subject_id, rating, year, badge, subject_type, genre, types[].

FTS5 search behavior:

Multi-word queries AND’d (love you finds titles with both)
Prefix matching (matri matches matrix)
Rank-ordered (best match first)
1-char queries fall back to LIKE (SQLite FTS5 needs ≥2 chars to be useful)
If FTS setup ever fails at import time, q= silently degrades to LIKE %query% — same results, slower

`GET /catalog/stats`

Everything about the index:

{
  "total": 1737,
  "movies": 163,
  "tv": 140,
  "anime": 25,
  "untyped": 1409,
  "untyped_pending_enrichment": 1497,
  "subject_types": { "1": 119, "2": 89, "6": 23 },
  "by_host": { "moviebox.ph": 1737 },
  "walk_state": { "running": false, "enriching": false },
  "keyword_stats": {
    "m": { "pages": 11, "items": 211, "hit_cap": false, "upstream_total": 211 }
  }
}

`POST /catalog/refresh`

curl -X POST http://localhost:8000/catalog/refresh                          # full walk
curl -X POST "http://localhost:8000/catalog/refresh?mode=enrich"            # enrichment only
curl -X POST "http://localhost:8000/catalog/refresh?force=true"             # walk all hosts, no dedupe

Returns immediately; runs in background. Watch /catalog/stats.

`POST /catalog/add?slug=`

Manually add a subject the walk missed. Useful for anything upstream’s search ranking doesn’t surface (Matrix was the case study — search for m returns 211 results but Matrix isn’t among them).

curl -X POST "http://localhost:8000/catalog/add?slug=matrix-W1E5680Y2S5" | jq

Fetches the detail response, upserts, and enriches immediately.

`GET /api/stream/{subject_id}`

curl "http://localhost:8000/api/stream/6207982430134357800?detail_path=breaking-bad-ej6Bp0MCAo7&se=1&ep=1" | jq

Returns has_resource, sources[] (resolution, format, codec, url, size, duration), hls[], dash[], free_episodes, limited.

`GET /api/stream/{subject_id}/proxy`

Range-aware MP4 passthrough. Drop into media servers (Jellyfin, Plex, Infuse, VLC) that can’t set custom headers.

# full file
curl -O "http://localhost:8000/api/stream/6207982430134357800/proxy?detail_path=breaking-bad-ej6Bp0MCAo7&res=1080p"

# ranged seek
curl -H "Range: bytes=0-1048575" "http://localhost:8000/api/stream/.../proxy?..." -o chunk.bin

Forwards Range upstream, returns 206 with Content-Range on partial. Full-file requests stream through a 64KB chunked iterator.

`GET /api/stream/{subject_id}/subtitles/{lang}`

Fetches the SRT, strips index lines, converts timestamps, prepends WEBVTT. Drop-in for a <track> element.

curl "http://localhost:8000/api/stream/6207982430134357800/subtitles/en?detail_path=breaking-bad-ej6Bp0MCAo7" | head -20

WEBVTT

00:00:17.833 --> 00:00:18.916
[Vision] <i>Who am I?</i>

SRT formatting tags (<i>, <b>, {\an8}) survive the conversion.

`GET /providers`

Live provider state:

{
  "default_host": "moviebox.ph",
  "provider_count": 7,
  "healthy": 7,
  "degraded": 0,
  "providers": [
    {
      "host": "moviebox.ph",
      "alive": true,
      "circuit_open": false,
      "circuit_open_for": 0,
      "consecutive_failures": 0,
      "total_success": 25,
      "total_failure": 0,
      "avg_latency_ms": 374,
      "last_success_ago": 0,
      "last_failure_ago": null,
      "last_error": null
    }
  ],
  "circuit_breaker": { "threshold": 3, "window_seconds": 60 }
}

`GET /health`

{
  "status": "ok",
  "version": "2.7.0",
  "default_host": "moviebox.ph",
  "providers": { "moviebox.ph": { "alive": true, "latency_ms": 374, "fails": 0, "circuit_open": false } },
  "tokens_cached": 1,
  "domain_cached": "https://mzfi.me",
  "domain_expires_in": 287,
  "catalog_indexed": 1737,
  "walk_running": false,
  "enriching": false
}

Frontend at `/app`

Single-file vanilla JS, no build step, no dependencies. Served by the same FastAPI process.

Views:

Home — hero carousel (auto-rotating, arrows, dots, Ken Burns zoom on the backdrop), continue-watching row above it (deduped by show, position ≥ 30s, top 8), then horizontal scroll rows for every home section
Catalog — type tabs (All/Movies/TV/Anime), sort dropdown, FTS title filter, pagination
Bookmarks — everything you’ve hearted, sorted by save time, “Clear all” button
History — every episode you’ve watched with progress bar and resume button
Detail — poster, description, metadata, cast, dubs, Play button or season/episode grid, bookmark toggle, trailer button (when available), watched-episode dots
Player — modal overlay with quality picker, subtitle picker, resume-from-history, keyboard shortcuts, episode picker on missing streams

Persistence (localStorage, per-browser):

mb_bookmarks — saved titles
mb_history — watch progress per (slug, se, ep), capped at 200 entries

Trailer playback — when subject.trailer.videoAddress.url exists, a ▶ Trailer button appears next to Bookmark on the detail page. Opens a minimal overlay with the promo MP4. No history tracking.

Player keyboard shortcuts:

Key	Action
`Space` / `k`	Play / pause
`←` / `→`	Seek ±5s
`↑` / `↓`	Volume ±10%
`f`	Fullscreen
`m`	Mute
`Esc`	Close player / exit fullscreen

Screenshots

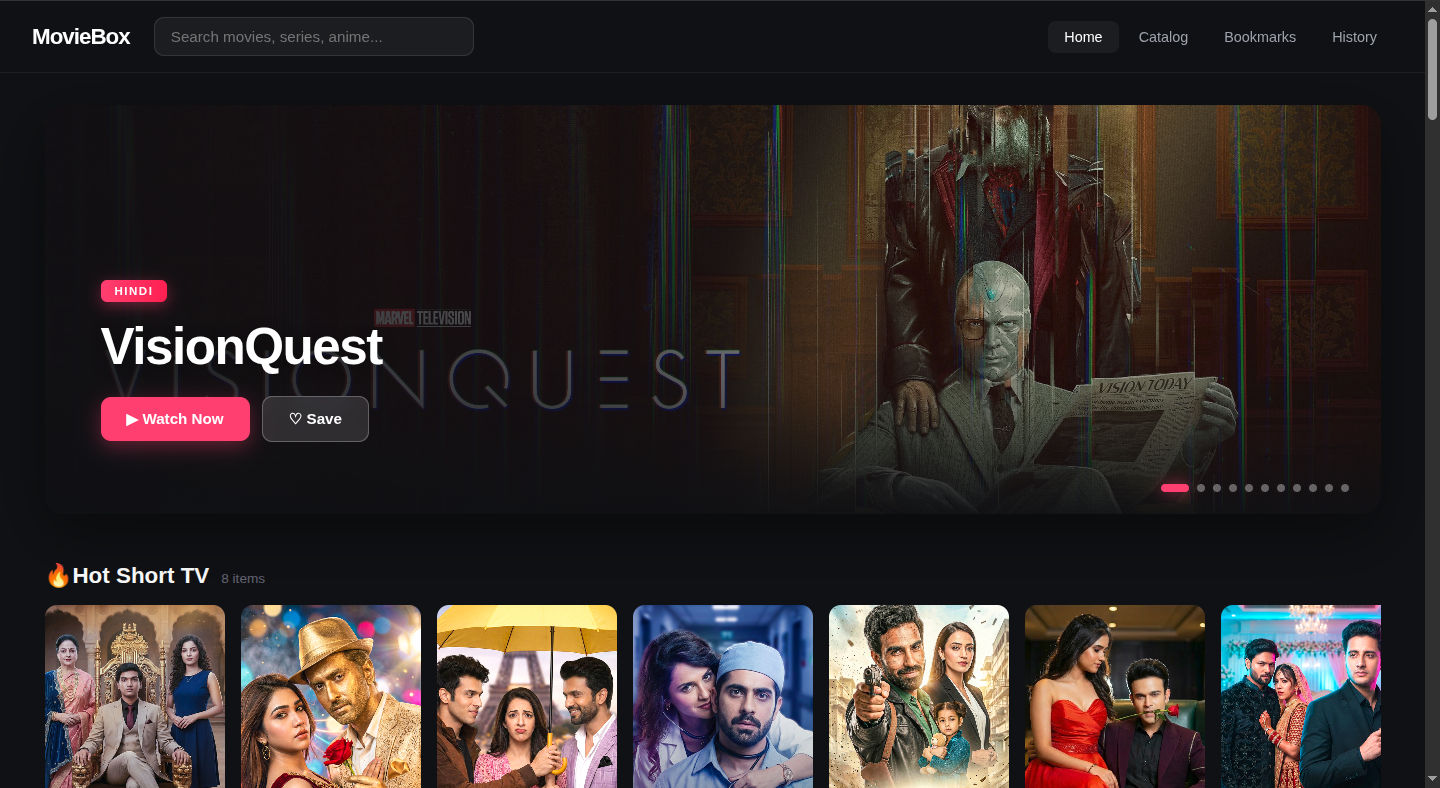

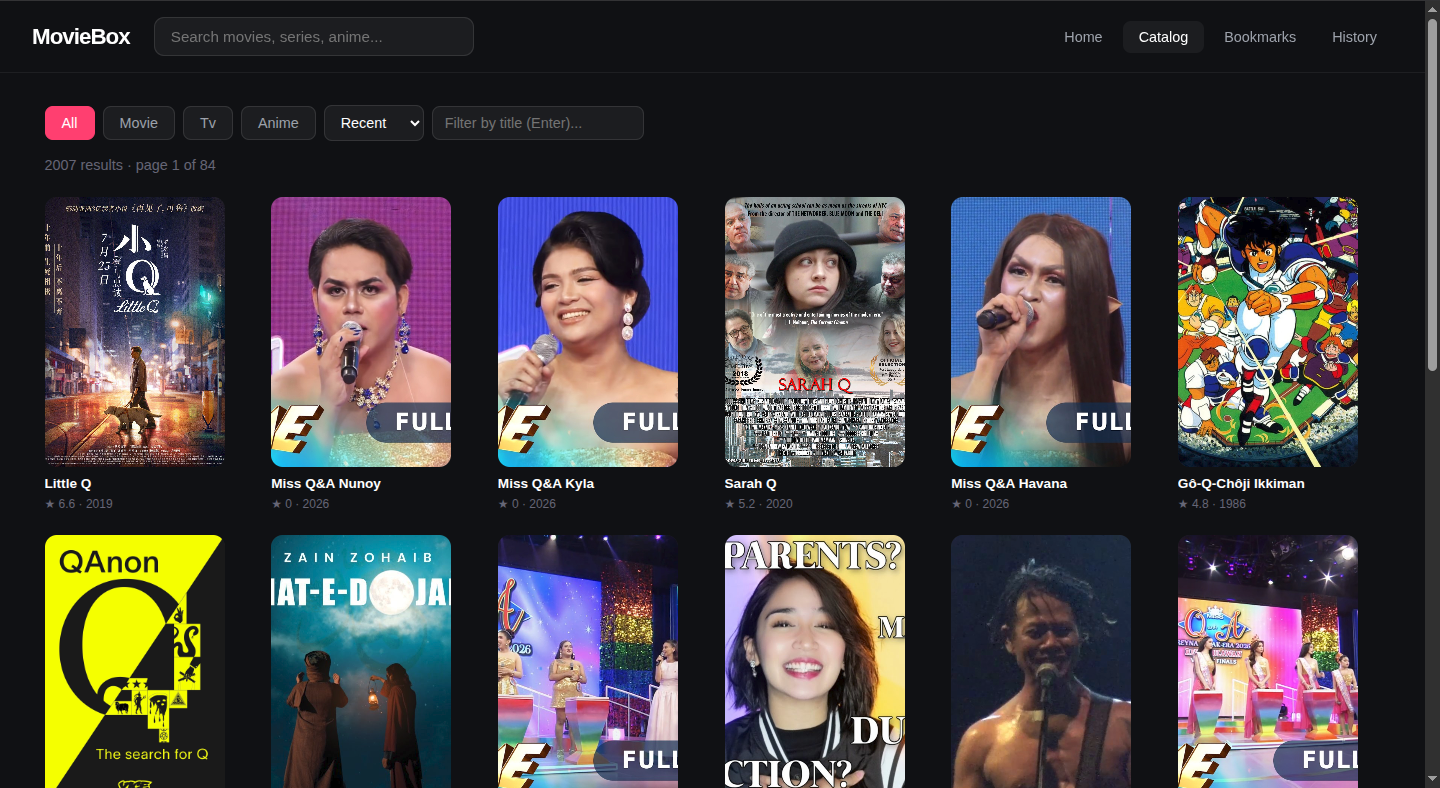

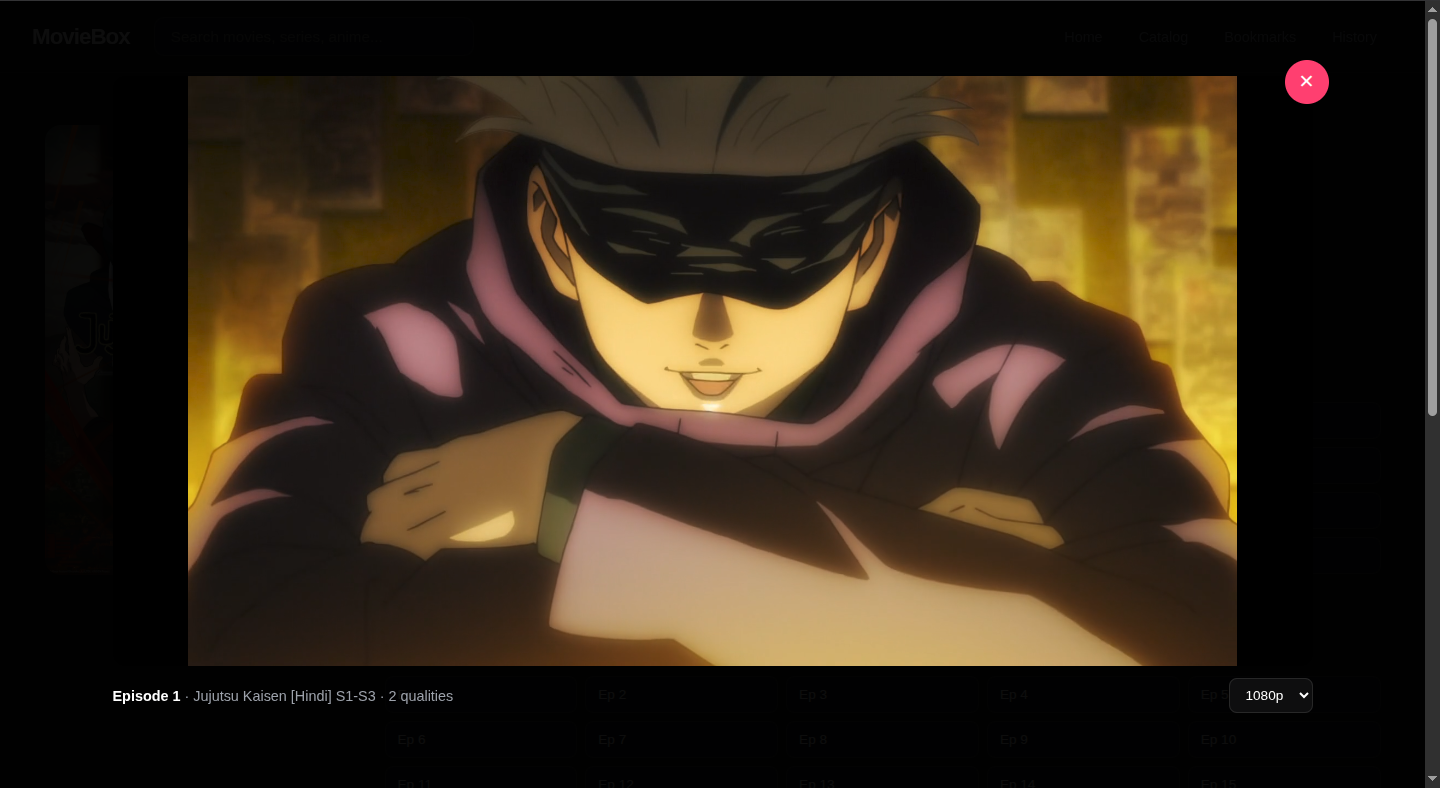

Home Catalog Player

More at screenshots/.

Architecture

Module layout

config.py            env vars + headers + constants
state.py             mutable globals (client, db, tokens, caches, walk_state)
providers.py         provider health, circuit breaker, probe loop
upstream.py          token cache, bff_request (failover), player, stream resolution
storage.py           sqlite schema, FTS5, read, upsert, classify
helpers.py           normalize, srt_to_vtt, pick_mp4_stream
catalog_worker.py    walk, enrichment, maintenance loop
dashboard.py         DASHBOARD_HTML string
routes.py            all API endpoints
main.py              FastAPI app + lifespan + middleware + / and /app
static/app.html      frontend

No circular imports. Import order: config → state → providers → upstream → catalog_worker → routes → main. storage and helpers are leaf modules.

The rule throughout: import state / import providers — never from state import client. Mutable references stay live via module attribute access.

Guest tokens per provider

Each mirror issues its own guest JWT via the x-user response header. Tokens are cached per host. On 401, the token is cleared, re-acquired, and the request retried once on the same host.

Player domain

Stream URLs live on a different host than the BFF. Fetched from /media-player/get-domain, cached for 300s. On stream failure, the cache is invalidated and the domain re-discovered once before surfacing an error.

Provider failover

Every BFF request tries the primary first, then falls over to the next healthy provider on network failure, 5xx, 429 (honoring Retry-After), or non-JSON. Per-host circuit breaker opens after 3 consecutive failures for 60s. A background probe loop cycles one host per PROVIDER_PROBE_INTERVAL seconds, keeping latency and health fresh.

All 7 known mirrors share the same aoneroom backend — the failover is pure resilience, not multiple catalogs.

Catalog walk

Two-tier source for the index:

Home ingest — every subject appearing in /home under a category section gets tagged with is_movie / is_tv / is_anime based on substring matching against the section name
Keyword walk — 36 keywords (a-z, 0-9), paginate until hasMore: false or CATALOG_MAX_PAGES_PER_KEYWORD, upsert every subject

After walking, a background enricher hits /detail/{slug} for every subject whose type is unknown and reads subjectType (1=movie, 2=series, 6=music video) plus genre (contains “anime” → is_anime). This is what gets movies from 44 to 400+ and TV from 60 to 300+.

The walk re-runs every 6 hours. Enrichment runs once after each walk. POST /catalog/refresh forces both manually.

Home feed is geo-targeted. Mumbai sees Cinema, Bollywood, Top Anime. Singapore sees Popular Movie, K-Drama, Anime[English Dubbed]. The classifier uses substring matching (movie, series, anime, etc.) so both work. Genre-named sections (Comedy, Epic Fantasy, BL Story) fall through to enrichment.

FTS5 search

subjects_fts is an FTS5 virtual table using external content mode — it mirrors the subjects table via triggers (subjects_fts_ai/ad/au). On first boot, if the row counts drift, init_schema rebuilds the FTS index. From then on, triggers keep it in sync on every insert/update/delete.

Query path: /catalog?q= calls storage.fts_search() which returns matching subject_ids or None. None (FTS unavailable or short query) → fall back to title LIKE ?. Empty list (FTS ran, no matches) → WHERE 1 = 0. Non-empty list → subject_id IN (...).

SQLite integrity check

On boot, right after init_schema, the lifespan runs PRAGMA integrity_check. If the DB is corrupt, the process prints the fix command and exits(1) before uvicorn binds the port. This is the safety net for the case where you accidentally run two python main.py against the same catalog.db — better to fail loudly than silently on every write while reads succeed.

SRT → VTT

/subtitles/{lang} fetches the SRT, strips numeric index lines, converts , timestamp separators to ., prepends WEBVTT, collapses whitespace. Italics and other SRT tags survive.

Project layout

.
├── main.py
├── config.py
├── state.py
├── providers.py
├── upstream.py
├── storage.py
├── helpers.py
├── catalog_worker.py
├── dashboard.py
├── routes.py
├── static/
│   └── app.html
├── requirements.txt
├── verify.py
├── Dockerfile
├── docker-compose.yml
├── README.md
├── CONTRIBUTING.md
├── .env.example
└── .gitignore

Verification

verify.py runs a live integration pass against a running server. 27 checks, chains real requests — pulls a slug from /home, feeds /detail, /api/stream, /captions, /proxy, /subtitles. Also exercises /providers, /api/hosts, catalog sorts, filters, FTS search.

# server must be running
python verify.py

# or against a remote host
python verify.py https://your-host

Exits non-zero on any failure. Drops straight into CI or a pre-commit hook.

Environment

See .env.example for the full list with defaults. Key variables:

Variable	Default	Notes
`PORT`	`8000`	Listen port
`RELOAD`	`0`	`1` enables autoreload (dev)
`REQUEST_TIMEOUT`	`25`	Upstream timeout, seconds
`CATALOG_DB`	`catalog.db`	SQLite path
`CATALOG_REFRESH_INTERVAL`	`21600`	Walk re-run interval (6h)
`CATALOG_MAX_PAGES_PER_KEYWORD`	`50`	Bump to 200 for deeper keyword coverage
`ENRICH_RATE_LIMIT`	`0.2`	Seconds between `/detail` calls during enrichment
`MOVIEBOX_HOST`	`moviebox.ph`	Primary provider
`MOVIEBOX_HOSTS`	7 mirrors	Comma-separated
`PROVIDER_PROBE_INTERVAL`	`60`	Seconds between probe ticks
`CIRCUIT_BREAKER_THRESHOLD`	`3`	Failures before host opens
`CIRCUIT_BREAKER_SECONDS`	`60`	How long host stays open

No config file. set -a && source .env && set +a && python main.py or docker compose up.

Deployment notes

Behind a reverse proxy — forward the full path. Routes assume / as root.
Healthcheck — point your orchestrator at /health.
Persist catalog.db — mount it as a volume or the walk restarts on every container rebuild. The compose file already bind-mounts it.
Rate limits — upstream is unauthenticated for guests. Heavy polling will get throttled.
Basic auth — if exposing beyond localhost, put auth_basic in the nginx config from day one. See CONTRIBUTING.md for the threat model.
ToS — you’re calling a third party’s private API. Behave accordingly.

Troubleshooting

`database disk image is malformed` in logs

Two processes running against one catalog.db. Stop the server, lsof catalog.db to find any orphan PIDs, kill them, then rm -f catalog.db catalog.db-wal catalog.db-shm and restart clean. The integrity check on boot will now catch this before the port is bound.

`FATAL: catalog.db is corrupt` on boot

Same as above — the integrity check fired. Run the fix command it printed and restart.

Catalog shows `total: 0` or stays at 44

The walk hasn’t finished or enrichment is still running. POST /catalog/refresh and watch /catalog/stats. walk_state.running should flip to true within a second.

`?type=movie` returns fewer results than expected

Enrichment hasn’t finished. Only home-ingested subjects have type tags until enrichment runs. Watch untyped_pending_enrichment in /catalog/stats — when it hits 0, everything has a type.

`/movies` and `/catalog?type=movie` show different counts

They’re different tools. /movies is a home-section fallback (44 items from Cinema/Bollywood/etc.). /catalog?type=movie is the indexed DB (400+ items). Use /catalog for real browsing.

Stream proxy returns 502

Upstream CDN might be blocking the referer. Check /api/stream/{sid} first — if sources are present, the URLs are live and the proxy should work. If empty, the episode may be gated or mid-upload.

Search misses a known title

Upstream /subject/search is relevance-ranked, not exhaustive. Matrix isn’t in the top 200 for m, so no walk keyword catches it. Fix: POST /catalog/add?slug=<known-slug> — the detail endpoint always works.

Frontend `/app` 404

static/app.html missing. Confirm the file exists in the repo. Dockerfile copies static/ explicitly.

Changelog

v2.7.0 — module split (10 files), provider failover with per-host circuit breakers, multi-host detection, /providers + /providers/probe + /providers/reset, FTS5 catalog search, trailer playback on detail pages, continue-watching row on home, SQLite integrity check on boot.

v2.6.0 — multi-host probe, ?host= on every BFF endpoint, source_host column in catalog.

v2.4.1 — type enrichment from /detail, keyword_stats telemetry, POST /catalog/add, ?mode=enrich refresh.

v2.4.0 — indexed catalog (/catalog, /catalog/stats, /catalog/refresh), SQLite storage, background walk + enrichment.

v2.3.3 — re-added / dashboard route; /api/tabs/variants confirms /subject/filter requires auth as guest.

v2.3.2 — catalog home-fallback, /sections, /browse/{section}, fuzzy section matching.

v2.3.1 — /search/suggest honesty (text-only upstream), total_sentinel flag, ?tab= override, /api/tabs.

v2.3.0 — shared httpx.AsyncClient, async-locked token init, retry with backoff, /home/all, /api/stream/{sid}/proxy, /api/stream/{sid}/subtitles/{lang}, Docker setup.

Author

Faisal (@faisaljs)

GitHub: github.com/faisaljs
Repo: github.com/faisaljs/Moviebox-API
Issues / PRs: github.com/faisaljs/Moviebox-API/issues

If you use this project, a star on GitHub is appreciated.

License

MIT — see LICENSE for the full text.

Not affiliated with moviebox.ph. Provided as-is. You are responsible for how you use it.

This site is open source. Improve this page.
